Introducing the redesigned Rheem® Commercial 7.5–12.5 Ton Renaissance™ Line—the culmination of years of research and development, creative engineering and innovation. Crafted with smart new features and exclusive PlusOne® advantages for easy replacement, installation and service.

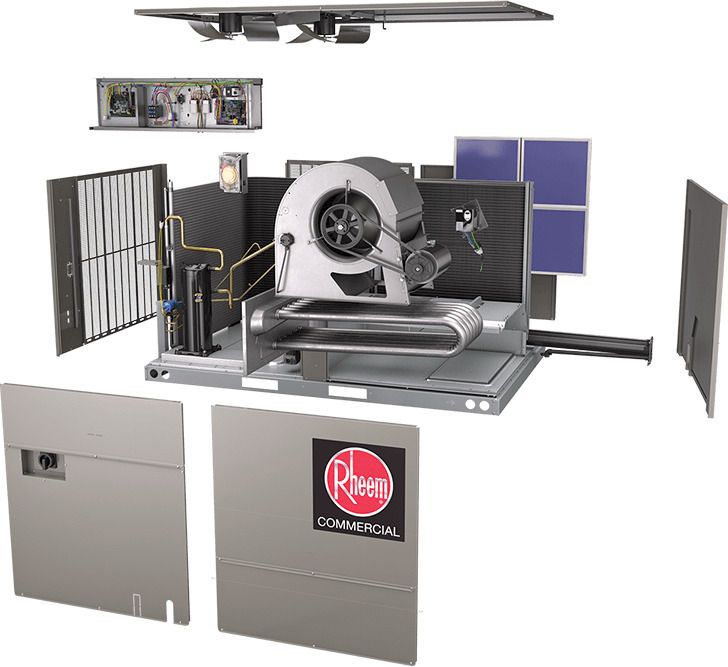

Featuring high-quality critical components, lean manufacturing and robust design like Scroll™ compressor technology
New footprint for seamless installs on most replacement units and easy serviceability to meet customer needs
Energy savings of over 30% compared to current baseline technology for lifetime savings of thousands of dollars
PlusOne ServiceSmart™ package offers built-in features for quick troubleshooting and easy access
| Heat Input | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Tonnage |
Gross Capacity (BTU/HR) |
AHRI Rated Net Capacity (BTU/HR) |
Nominal CFM/AHRI (BTU/HR) |
IEER | Standard (BTU/HR) |
High (BTU/HR) |
Dimensions H x W x L (inches) |
Shipping Weight (pounds) |
| RGEDZR090A**15 | 7.5 | 88000 | 85000 | 3000/3175 | 12.7 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZR090A**20 | 7.5 | 88000 | 85000 | 3000/3175 | 12.7 | 166,000 | 205,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZR102A**15 | 8.5 | 99000 | 96000 | 3400/3200 | 12.7 | 105,000 | 250,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZR102A**22 | 8.5 | 99000 | 96000 | 3400/3200 | 12.7 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZR120A**15 | 10 | 118000 | 114000 | 4000/3480 | 12.7 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZR120A**22 | 10 | 118000 | 114000 | 4000/3480 | 12.7 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZS090**15 | 7.5 | 88000 | 85000 | 3000/3175 | 12.7 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZS090**22 | 7.5 | 88000 | 85000 | 3000/3175 | 12.7 | 166,000 | 205,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZS102**15 | 8.5 | 99000 | 96000 | 3400/3225 | 12.7 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZS102**22 | 8.5 | 99000 | 96000 | 3400/3225 | 12.7 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZS120**15 | 10 | 118000 | 114000 | 4000/3480 | 12.7 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZS120**22 | 10 | 118000 | 114000 | 4000/3480 | 12.7 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZS150**15 | 12.5 | 150000 | 144000 | 5000/3750 | 12.2 | 105,000 | 150,000 | 60.5 x 60 x 89.5 | 1133 |
| RGEDZS150**22 | 12.5 | 150000 | 144000 | 5000/3750 | 12.2 | 158,000 | 225,000 | 60.5 x 60 x 89.5 | 1133 |
| RGEDZT090**15 | 7.5 | 88000 | 85000 | 3000/3175 | 14.6 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZT090**22 | 7.5 | 88000 | 85000 | 3000/3175 | 14.6 | 166,000 | 205,000 | 50.5 x 60 x 89.5 | 878 |
| RGEDZT102**15 | 8.5 | 99000 | 96000 | 3400/3200 | 14.6 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZT102**22 | 8.5 | 99000 | 96000 | 3400/3200 | 14.6 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 907 |
| RGEDZT120**15 | 10 | 118000 | 114000 | 4000/3480 | 14.6 | 105,000 | 150,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZT120**22 | 10 | 118000 | 114000 | 4000/3480 | 14.6 | 182,000 | 225,000 | 50.5 x 60 x 89.5 | 935 |
| RGEDZT150**15 | 12.5 | 150000 | 144000 | 5000/3750 | 14 | 105,000 | 150,000 | 60.5 x 60 x 89.5 | 1133 |
| RGEDZT150**122 | 12.5 | 150000 | 144000 | 5000/3750 | 14 | 158,000 | 225,000 | 60.5 x 60 x 89.5 | 1133 |
| Model | Nominal Tonnage |
Gross Capacity (BTU/HR) |
AHRI Rated Net Capacity (BTU/HR) |
Nominal CFM/AHRI (BTU/HR) |
IEER | Dimensions H x W x L (inches) |
Shipping Weight (pounds) |
| RACDZR090 | 7.5 | 88000 | 85000 | 3000/3175 | 12.9 | 50.5 x 60 x 89.5 | 775 |
| RACDZR102 | 8.5 | 99000 | 96000 | 3400/3200 | 12.9 | 50.5 x 60 x 89.5 | 801 |
| RACDZR120 | 10 | 118000 | 114000 | 4000/3480 | 12.9 | 50.5 x 60 x 89.5 | 830 |
| RACDZS090 | 7.5 | 88000 | 85000 | 3000/3200 | 12.9 | 50.5 x 60 x 89.5 | 775 |
| RACDZS102 | 8.5 | 99000 | 96000 | 3400/3225 | 12.9 | 50.5 x 60 x 89.5 | 801 |
| RACDZS120 | 10 | 118000 | 114000 | 4000/3480 | 12.9 | 50.5 x 60 x 89.5 | 830 |
| RACDZS150 | 12.5 | 148000 | 142000 | 5000/4150 | 12.4 | 50.5 x 60 x 89.5 | 1032 |
| RACDZT090 | 7.5 | 88000 | 85000 | 3000/3200 | 14.8 | 50.5 x 60 x 89.5 | 775 |
| RACDZT102 | 8.5 | 99000 | 96000 | 3400/3225 | 14.8 | 50.5 x 60 x 89.5 | 801 |
| RACDZT120 | 10 | 118000 | 114000 | 4000/3480 | 14.8 | 50.5 x 60 x 89.5 | 830 |
| RACDZT150 | 12.5 | 148000 | 142000 | 5000/4150 | 14.2 | 50.5 x 60 x 89.5 | 1032 |
Building on nearly a century of innovation, the Rheem Renaissance Commercial HVAC Line is the next step in our evolution—commercial HVAC solutions designed to provide perfect comfort, flexibility and support for any business application. All supported by the commercial experts at Rheem.
More accurately design and estimate cost for jobs in less time with compatible spec data, 2D and 3D CAD® files and Revit® files.
We offer smart selection tools to help you specify, select and document all Rheem equipment for new construction or replacement in all commercial applications. Click here to visit RapidSpec, our comprehensive commercial air sizing tool.
With a breadth of heating and cooling solutions and built-to-order systems to suit your business needs, design and application requirements—there’s no need to overpay for unnecessary “packages.”
Rheem backs every commercial unit with our industry-leading commercial limited warranty—so your business can count on protected performance year after year.
Our vast distribution network across the US and Canada means improved factory lead times to help avoid business downtime.
From our dedicated support team to resources such as MyRheem.com, our Innovative Learning Centres, live product assistance and more, Rheem is here to support you at every step.
Get the industry-leading performance and support of Rheem Renaissance.
