Professional Classic Series: Direct Vent

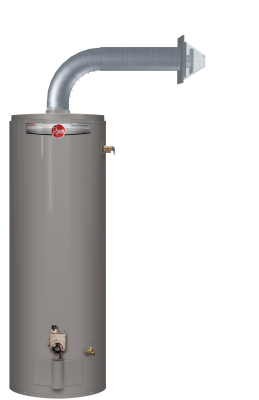

Professional Classic™ Direct Vent gas water heaters use outside air for combustion, offer longer venting options and a coaxial vent for easy installation

• .61 EF
•  Well insulated for reduced stand-by heat loss

• FHR: 78 gallons for 50-gallon model and 66 gallons for 40-gallon model
• Recovery: 30.3 to 36.4 GPH at a 90° F rise, depending on model

• Adjustable coaxial vent allows flexibility of installation, can swivel 360 degrees and uses outside air for combustion and requires no electrical power
• Aluminum vent and cap base to prevent staining of building exterior

• Longer venting options available, see chart on reverse
• Order Horizontal Vent Kit: #SP20131
• Order Vertical Vent Kit: #SP20132

• Exclusive air/fuel shut-off device
• Maintenance free – no filter to clean
• Disables the heater in the presence of flammable vapor accumulation

• Meets 40 ng/J NOx requirements

• Premium grade anode rod provides long-lasting tank protection

• Enhanced flow brass drain valve
• Temperature and pressure relief valve included
• Low lead compliant
• Exclusive Rheemglas® tank lining resists corrosion and prolongs tank life
• Heat saving flue baffle design
• Gas control and combination thermostat
• Piezo ignition
• High temperature silicone bands reduce venting installation time
• Internal air tube for reduced footprint
• EverKleen™ patented system fights sediment build-up
